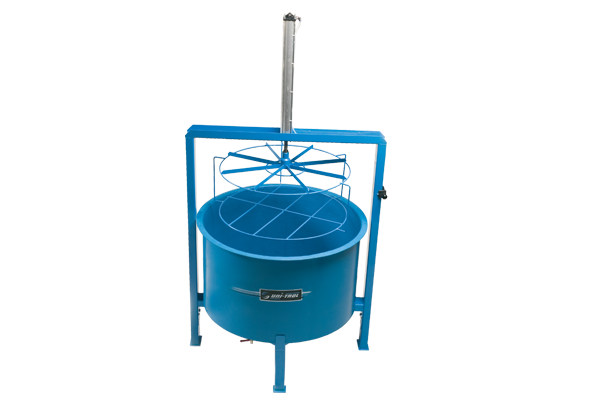

Tyre Testing Bath for verifying tubes and tubeless tyres tightness for cars and light trucks.
A veryfied tube is immersed in water by pneumatic cylinder controlled by the lever valve which can stop the piston in any position. Compressed air outlets are equipped with silencers.
A light plastic tank is placed on the base and can be easily removed and tilted for cleaning. A ball drain valve is installed in the tank’s bottom. A tyre can be easily placed inside and removed outside of the bath and dried by the pressure frame with a basket.
Specifications:
| recommended water level – from the top edge of the bath |
operational level 200 mm / 110 mm max. |
| operational water capacity |
approx. 300 L |
| outside parameters |
1265x1040x2300 mm |
| tyre diameter range |
up to 890 mm |
| air supply pressure |
0.6-1.0 MPa |
| total tank capacity |
437 L |
| inside tank diameter |
980 mm |
| weight of an empty tank |
80 kg |
| water draining time |
approx. 35 min |
