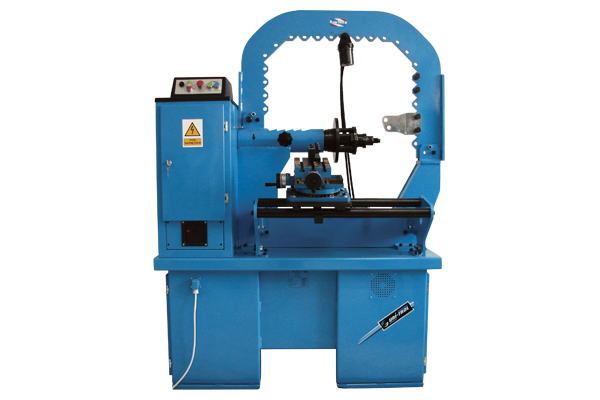

Wheel Rim Straightening Machine for steel and aluminum wheel rims 13″-24”.
A wheel rim is repaired by means of a hydraulic cylinder supplied with suitable working end caps of various shapes. Quick-release hydraulic clamp holder provide fast, precise and secure rim fixing. This is an unique, unparalleled solution offered only by UNI-TROL.
Repair operations are easy and take not more than few minutes. Working end caps allow to fix a damaged wheel rim in any place of its deformation.
Not suitable for rims without central hole.
The wheel rim straightening machine is equipped with:
- working end caps of various shapes suitable for different rim deformations
- a set of centering rings for wheel rims of different central opening diameters
- deformation positioning device
- mounting plates with adjustable set screws
- preliminary straightening lever
Specifications:
| straightening cylinder force |
45 kN |
| power supply |
3×400 V/50 Hz |
| hydraulic pump motor power |
0.55 kW |
| noise level |
75 dB |
| wheel rim diameter range |
13″-24” |
| drive motor power |
0.55 kW |
| max. hydraulic pump pressure |
200 Bar |
| weight |
450 kg |
